3. Boolean Logic

  • Much of the following will likely be a review of already well understood concepts

  • This content is covered for completeness, but will be kept at a relatively high level

3.1. Boolean Operators and Operands

  • Boolean logic is a form of algebra that operates on boolean values that can take on only two states

  • These states are typically called true and false

    • Depending on context, these are sometimes referred to as On/Off, 1/0, or high voltage/low voltage

  • Within the algebra, the operands are values that take on one of these two states

  • The operators act on these operands to produce a new boolean value

Note

If this terminology is throwing you off, remember that this is like the integer operators/operands you are familiar with. Consider the expression \(1 + 2\). The operands here are integers \(1\) and \(2\) and the operator is \(+\), which means addition. Here, addition is an operator that takes two integer values and produces a new integer value.

  • There are three basic boolean operators

    • \(not\)

      • Unary operator — only operates on a single operand to produce a single value

      • Given some boolean value \(a\), invert it

        • In other words, if \(a\) is true, not \(a\) is false, and vice versa

      • Typically denoted as \(\lnot a\) or sometimes \(\overline a\)

    • \(and\)

      • Binary operator — operates on two operands to produce a single value

      • Given boolean values \(a\) and \(b\), return true if both values are true, false otherwise

      • Denoted as \(a \land b\)

    • \(or\)

      • Binary operator — operates on two operands to produce a single value

      • Given boolean values \(a\) and \(b\), return true if both or either are true, false otherwise

      • Denoted as \(a \lor b\)

../../_images/venn_diagram_and_or_not.png

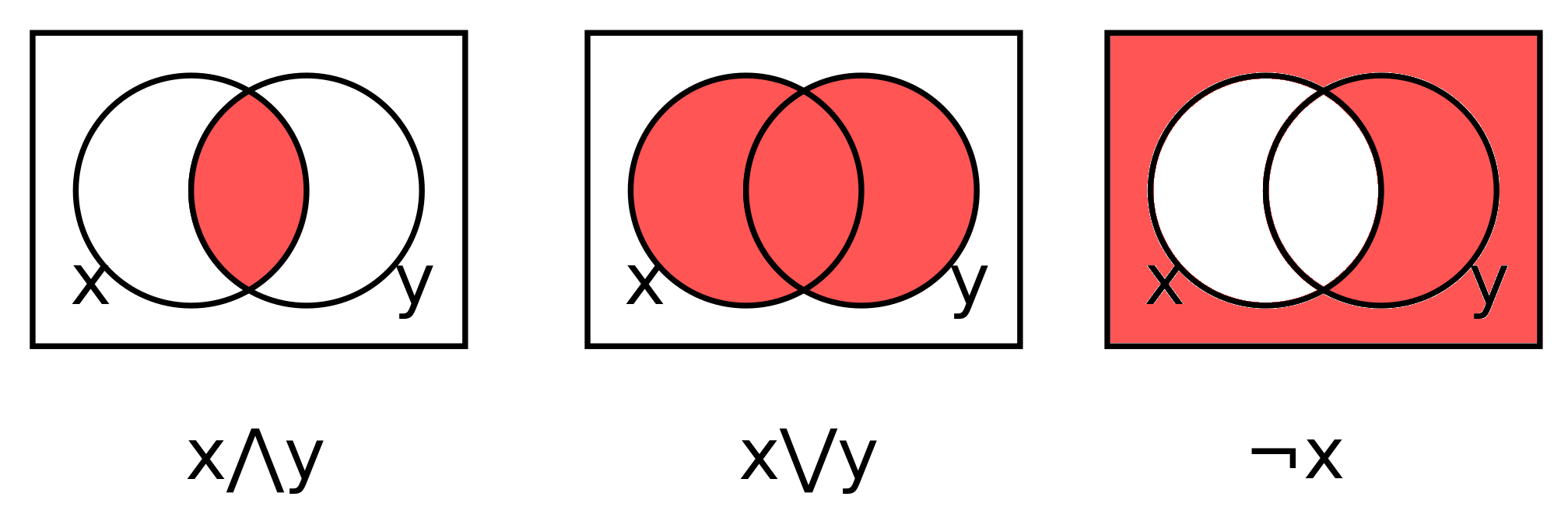

Visual representations of the basic boolean operators with Venn diagrams. The images represent \(and\), \(or\), and \(not\) respectively.

  • There are additional boolean operators that can be made up from the three basic operators

  • Three of these are commonly used within the context of computer architecture, thus they will be presented here

    • \(Exclusive\) \(or\) (\(xor\))

      • Binary operator — operates on two operands to produce a single value

      • Given boolean values \(a\) and \(b\), return true if either are true, false otherwise

        • Similar to \(or\), but if both are true, it returns false

      • Denoted as \(a \oplus b\)

      • Equivalent to \((a \lor b) \land \lnot (a \land b)\)

    • \(not\) \(or\) (\(nor\))

      • Literally \(not\) \(or\)

      • Sometimes denoted as \(\overline \lor\)

      • Equivalent to \(\lnot (a \lor b)\)

      • Functionally complete — can be used to generate all other boolean operators

    • \(not\) \(and\) (\(nand\))

      • Literally \(not\) \(and\)

      • Sometimes denoted as \(\overline \land\)

      • Equivalent to \(\lnot (a \land b)\)

      • Functionally complete — can be used to generate all other boolean operators

../../_images/venn_diagram_nand_not_xor.png

Visual representations of the additional boolean operators with Venn diagrams. The images represent \(nand\), \(nor\), and \(xor\) respectively.

3.2. Truth Tables

  • Truth tables provide a structured visualization of all possible truth values for logical expressions

  • These are probably best understood with examples

  • Below is a truth table for the above boolean operators for all possible combinations of values for two operands

Truth Table for Basic and Common Logical Operators

\(a\)

\(b\)

\(\lnot a\)

\(a \land b\)

\(a \lor b\)

\(a \oplus b\)

\(\lnot (a \land b)\)

\(\lnot (a \lor b)\)

\(false\)

\(false\)

\(true\)

\(false\)

\(false\)

\(false\)

\(true\)

\(true\)

\(false\)

\(true\)

\(true\)

\(false\)

\(true\)

\(true\)

\(true\)

\(false\)

\(true\)

\(false\)

\(false\)

\(false\)

\(true\)

\(true\)

\(true\)

\(false\)

\(true\)

\(true\)

\(false\)

\(true\)

\(true\)

\(false\)

\(false\)

\(false\)

  • In the context of digital circuits, it is common to use 0 and 1 in place of \(false\) and \(true\)

  • Going forward, 0 and 1 will be used for this course

Note

The empty columns do not have any formal meaning. They are included here for visual clarity.

3.2.1. Building Out the Truth Table

  • Notice the \(\lnot (a \land b)\) and \(\lnot (a \lor b)\) columns in the truth tables are compound operations

    • They are made up of two operations — \(not\) and \(and\)/\(or\)

  • These columns are the inverse of the basic and/or columns in the table

    • Literally \(not\) the result of those columns

  • Consider a more complex compound expression — \((a \land \lnot b) \lor \lnot c\)

  • It is often helpful to break the operation down into parts that are easier to calculate

  • Then, build out a truth table to solve each part individually

Truth Table for \((a \land \lnot b) \lor \lnot c\)

\(a\)

\(b\)

\(c\)

\(\lnot b\)

\(\lnot c\)

\(a \land \lnot b\)

\((a \land \lnot b) \lor \lnot c\)

0

0

0

1

1

0

1

0

0

1

1

0

0

0

0

1

0

0

1

0

1

0

1

1

0

0

0

0

1

0

0

1

1

1

1

1

0

1

1

0

1

1

1

1

0

0

1

0

1

1

1

1

0

0

0

0

Activity

Create and complete a truth table for the boolean expression \(\lnot(a \land b) \lor (a \land \lnot b)\).

\(a\)

\(b\)

\(\lnot b\)

\(a \land b\)

\(a \land \lnot b\)

\(\lnot(a \land b)\)

\(\lnot(a \land b) \lor (a \land \lnot b)\)

3.3. Properties of Logical Operators

  • There are several algebraic properties that hold for boolean logic

  • Most of these are intuitive, but will be presented here for completeness

Boolean Algebra Laws

Identity for \(\lor\)

\(a \lor false = a\)

Identity for \(\land\)

\(a \land true = a\)

Idempotence for \(\lor\)

\(a \lor a = a\)

Idempotence for \(\land\)

\(a \land a = a\)

Annihilator for \(\lor\)

\(a \lor true = true\)

Annihilator for \(\land\)

\(a \land false = false\)

Associativity of \(\lor\)

\(a \lor (b \lor c) = (a \lor b) \lor c\)

Associativity of \(\land\)

\(a \land (b \land c) = (a \land b) \land c\)

Commutativity of \(\lor\)

\(a \lor b = b \lor a\)

Commutativity of \(\land\)

\(a \land b = b \land a\)

Complementation 1

\(a \land \lnot a = false\)

Complementation 2

\(a \lor \lnot a = true\)

Double negation

\(\lnot (\lnot a) = a\)

Distributivity of \(\lor\) over \(\land\)

\(a \lor (b \land c) = (a \lor b) \land (a \lor c)\)

Distributivity of \(\land\) over \(\lor\)

\(a \land (b \lor c) = (a \land b) \lor (a \land c)\)

Absorption 1

\(a \lor (a \land b) = a\)

Absorption 2

\(a \land (a \lor b) = a\)

De Morgan’s 1

\(\lnot a \lor \lnot b = \lnot (a \land b)\)

De Morgan’s 2

\(\lnot a \land \lnot b = \lnot (a \lor b)\)

Note

If the absorption laws are unclear, consider the corresponding distributive and idempotent laws. For example, below is the first absorption law:

\(a \lor (a \land b) = (a \lor a) \land (a \lor b) = a \land (a \lor b)\)

If \(a\) is \(false\), given the \(\land\) annihilator law, the expression evaluates to \(false\).

\(false \land (false \lor b) = false\)

If \(a\) is \(true\), given the \(\land\) identity law, the expression evaluates to the result of \((a \lor b)\), which, given the \(\lor\) annihilator law, evaluates to \(true\), therefore, the whole expression evaluates to \(true\).

\(true \land (true \lor b) = true \land true = true\)

If still not convinced, below is the truth table for the first absorption law.

Absorption Law 1 — \(a \lor (a \land b) = a\)

\(a\)

\(b\)

\(a \land b\)

\(a \lor (a \land b)\)

0

0

0

0

0

1

0

0

1

0

0

1

1

1

1

1

The proof follows similar for the second annihilation law.

3.3.1. De Morgan’s Law

Warning

Although consistently numbered here, the labels of the first and second De Morgan’s laws is arbitrary.

  • De Morgan’s laws are of particular interest in the context of computer architecture

    • Given the popularity of \(nor\) and \(nand\) in circuit design

  • De Morgan’s laws are as follows

    \(\lnot a \lor \lnot b = \lnot(a \land b)\)

    \(\lnot a \land \lnot b = \lnot(a \lor b)\)

  • Consider that the right hand side of both equations are \(nand\) and \(nor\) respectively

  • This means that, not only can \(nand\) be made with \(not\) and \(and\), but also with \(not\) and \(or\)

    • One does not even need the \(and\) operator to create \(nand\)

    • In fact, given only \(not\) and \(or\), one can create \(and\)

      • \(\lnot(\lnot a \lor \lnot b) = \lnot(\lnot(a \land b)) = a \land b\)

    • This would work the same for \(nor\) being made with \(not\) and \(and\)

  • The below truth table provides an exhaustive proof of De Morgan’s laws

De Morgan’s Laws

\(a\)

\(b\)

\(\lnot a\)

\(\lnot b\)

\(a \lor b\)

\(a \land b\)

\(\lnot a \lor \lnot b\)

\(\lnot a \land \lnot b\)

\(\lnot (a \lor b)\)

\(\lnot (a \land b)\)

0

0

1

1

0

0

1

1

1

1

0

1

1

0

1

0

1

0

0

1

1

0

0

1

1

0

1

0

0

1

1

1

0

0

1

1

0

0

0

0

  • De Morgan’s laws may not be immediately obvious, but think about what they mean

    • Visualizations may help with grasping the intuition

  • Consider the first law

    \(\lnot a \lor \lnot b = \lnot(a \land b)\)

../../_images/de_morgans_law_1.png

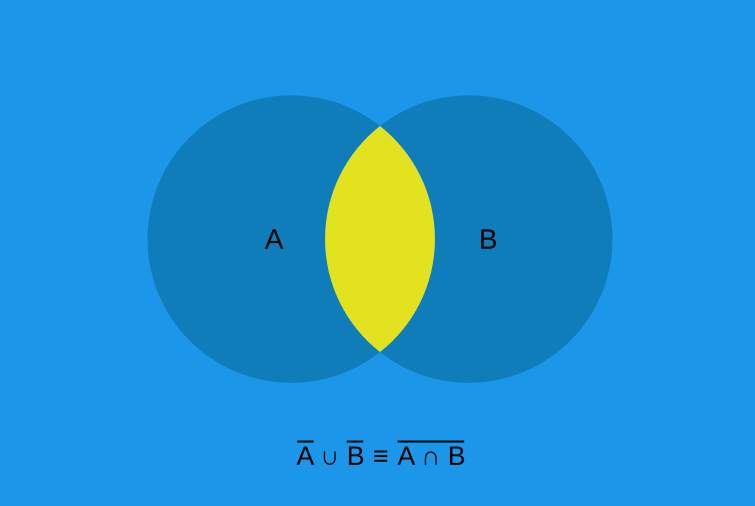

Visualization of De Morgan’s first law. In this figure, blue is what is included in the result, yellow is what is excluded. Here, \(\cup\) (set union) is equivalent to or (\(\lor\)) and the \(\cap\) (set intersect) is equivalent to and (\(\land\)).

  • It is easier to see how the above figure represents \(\lnot(a \land b)\)

    • Think of the Venn diagram of \(and\), then invert it

  • But also imagine what \(\lnot a\) and \(\lnot b\) would be

    • \(\lnot a\) would be everything but what is within \(a\), including that which is in \(b\)

    • \(\lnot b\) would be everything but what is within \(b\), including that which is in \(a\)

  • It may be helpful to think of two versions of the figure, one which is \(\lnot a\) and the other \(\lnot b\)

  • Then, \(or\) would be the union of these two images, which is the same as the above figure

    • Union being, keep all points from both images

  • Now consider the second law

    \(\lnot a \lor \lnot b = \lnot(a \land b)\)

../../_images/de_morgans_law_2.png

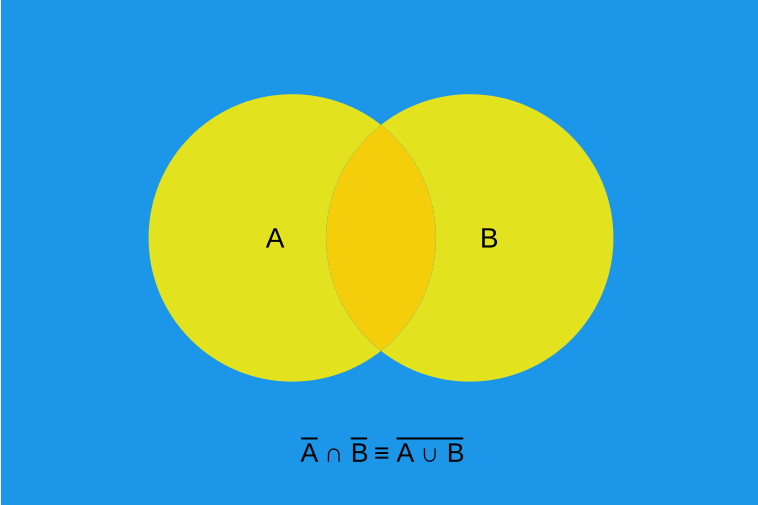

Visualization of De Morgan’s second law. In this figure, blue is what is included in the result, yellow is what is excluded. Here, \(\cup\) (set union) is equivalent to or (\(\lor\)) and the \(\cap\) (set intersect) is equivalent to and (\(\land\)).

  • Similar to the first law, it is easier to see how the above figure represents \(\lnot(a \lor b)\)

  • Imagine what \(\lnot a\) and \(\lnot b\) would be

    • It’s easier to think of two versions of the image, one for each \(\lnot a\) and \(\lnot b\)

  • Then, \(and\) would be the intersect of these two images, which is the same as the above figure

    • Intersect being, only keep the points that exist in both images
